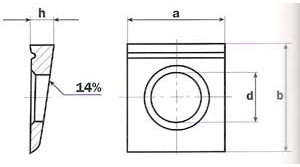

| d | M12 | M16 | M20 | M22 |
|---|---|---|---|---|
| d | 13 | 17 | 21 | 23 |
| a | 26 | 32 | 40 | 44 |
| b | 30 | 36 | 44 | 50 |
| h | 6,2 | 7,5 | 9,2 | 10 |
| Peso/ weight 1000ud.kg | ||||
|---|---|---|---|---|
| - | 20,40 | 35,70 | 66,50 | 89,80 |
| d | M24 | M27 | M30 | M36 |
|---|---|---|---|---|
| d | 25 | 28 | 31 | 37 |
| a | 56 | 56 | 62 | 68 |
| b | 56 | 56 | 62 | 68 |
| h | 10,8 | 10,8 | 11,7 | 12,5 |
| Peso/ weight 1000ud.kg | ||||
|---|---|---|---|---|
| - | 142,00 | 134,00 | 174,00 | 210,00 |
| ST/HV100 | HV140 | FST | C45 | A2 | A4 |
|---|---|---|---|---|---|
